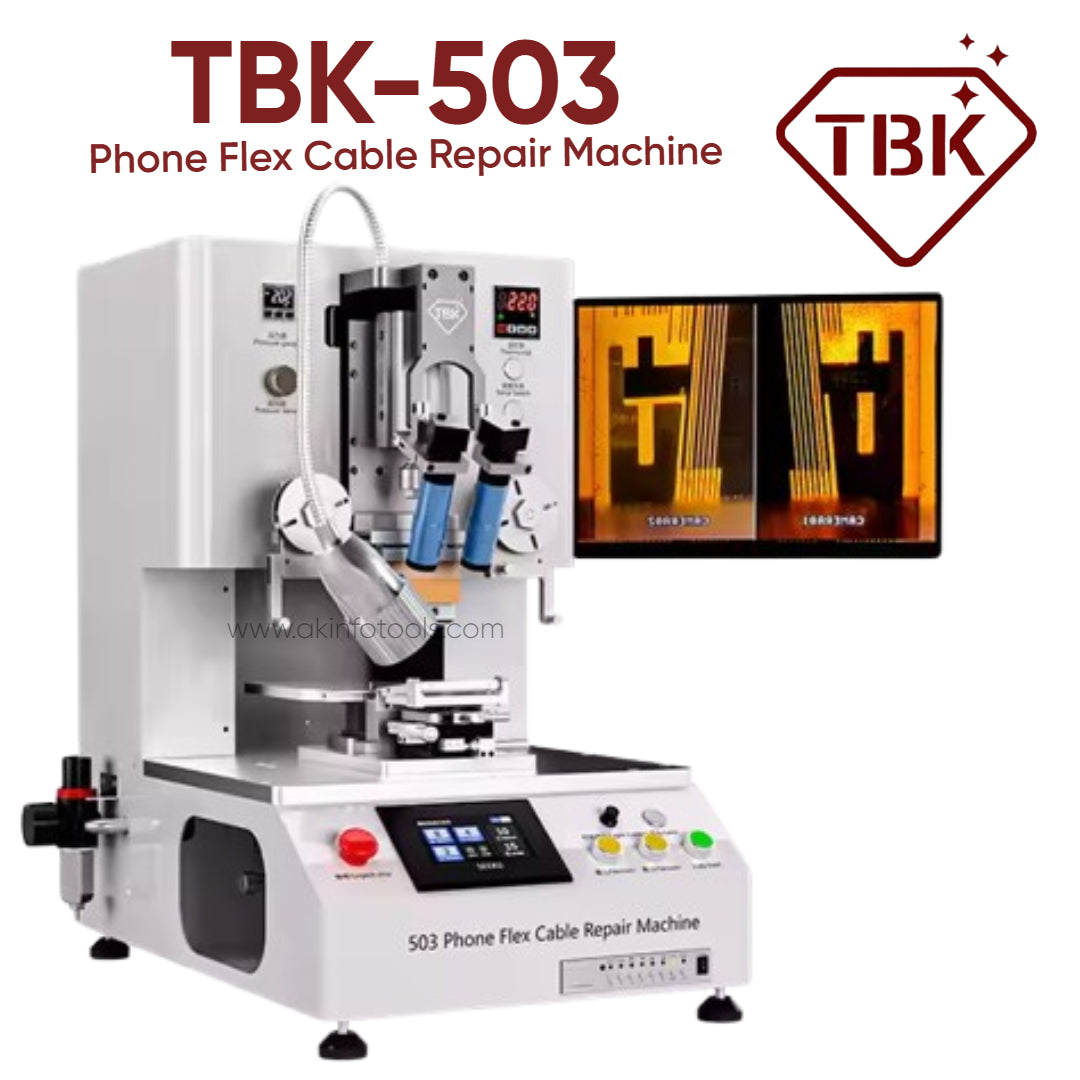

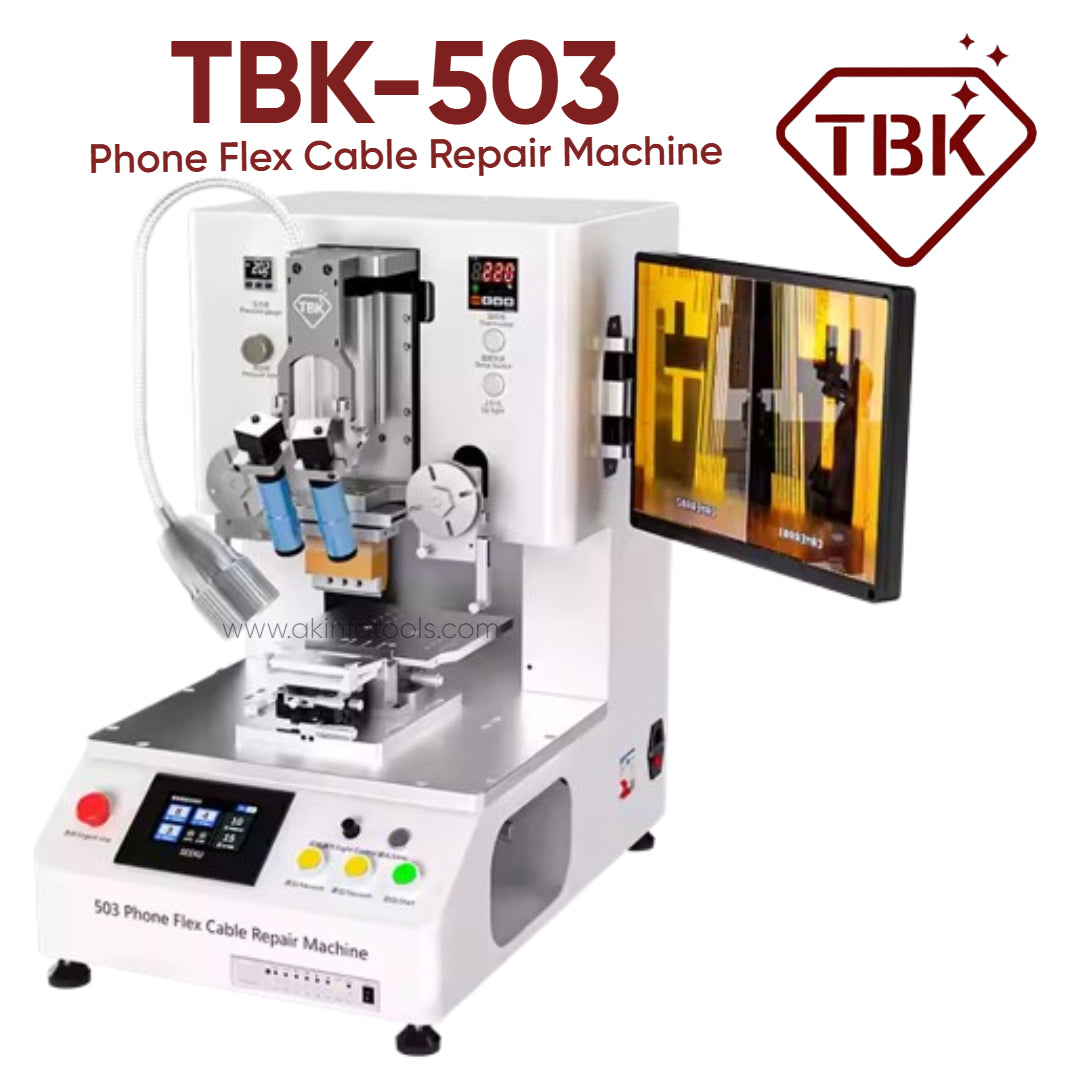

TBK-503 Flex Cable Bonding Machine For OLD-LCD-Flexible screen-curved screen

Features:

COF green row special constant temperature press, suitable for various industries' wire harness repair, Green row, Black row, Yellow row, Display cable, Touch cable, Backlight screen, Curved screen, etc
Industrial-grade upper and lower high-definition 4-lens alignment system, 2-megapixel CCD alignment, ultra-clear, high-precision, the alignment adjustment platform is equipped with a micrometer for precise alignment
Can repair a variety of malfunctioning screens: no display, no touch, touch failure, black screen, blurry screen, abnormal display, cable breakage, screen cable out (cable problem), etc
Products cover a wide range of industries, including medical equipment, energy vehicles, and communication modules, and areas waiting for industry, ACF, COF, and other processes
HD footage, Upper and lower HD alignment lenses, 2 million pixels CCD, super clear alignment
Micrometer, flexible micrometer alignment, no, L CD, and cable arrangement
You can adjust the LCD and cables up, down, left, and right; it can be vacuum adsorbed in any position
PLC intelligent touch screen can control pressure and discharge time, temperature, and tape transport. Etc. Simple and precise.The
Teflon belt automatically rotates to free your hands. Lead oxide material is durable and protects the blade with a burn-proof cable
Most accessories are imported configurations, simple operation buttons are clear at a glance, and are more convenient to operate

Specification:

• Model: 503
• Device power supply: AC 220V
• Equipment power: 800W
• Processing efficiency: 10~15s/Pcs
• Suitable for products: 2.4~7.0 inches
• LCD platform: 182*180mm
• Hot pressing accuracy: ±5um
• Working air source: 0.2~0.6MPa
• Product name: COF constant temperature press
• Device functions: LCD screen, cable binding, and repair
• Suitable for: Mobile phone screens, tablet projectors, etc.
• Blade size: 54*1.5mm/64*0.6mm
• Dimensions: 630*500*700mm
• Package Size: 750*600*950mm
• Product Weight: 55kg
• Repair brands: Huawei, Apple, Xiaomi, Samsung, OPPO, VIVO, etc.

Package includes:

• 1 x Machine
• 1 x Power Cable
